Placa base ultraduradera AMD A520 con LAN GbE con gestión de ancho de banda, PCIe 3.0 x4 M.2, Smart Fan 5, diseño de resistencias antiazufre
Compatible con procesadores AMD Ryzen™ serie 5000/Ryzen™ serie 5000 G/Ryzen™ serie 4000 G y Ryzen™ 3000 y Ryzen™ 3000 serie G
DDR4 sin búfer ECC/no ECC de doble canal, 2 DIMM
PCIe Gen3 x4 M.2 con compatibilidad con modos PCIe NVMe y SATA
LAN GbE con gestión de ancho de banda
Audio HD de 8 canales con capacitores de audio de alta calidad

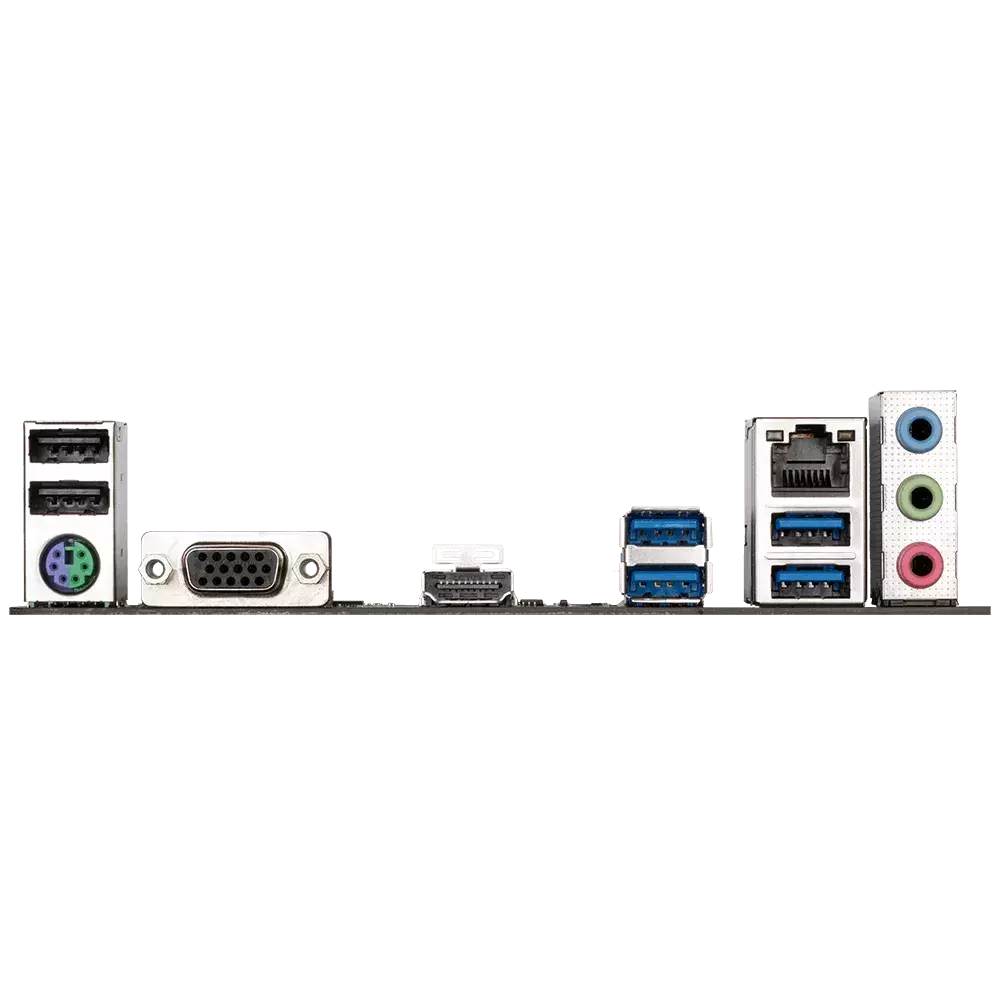

HDMI trasero y D-sub para compatibilidad con múltiples pantallas
Smart Fan 5 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con función FAN STOP
GIGABYTE APP Center, uso sencillo y fácil
Procesador
AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
AMD A520
Memoria
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Gráficos Integrados
Integrated Graphics Processor with AMD Radeon™ Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Puertos de Expansión
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Interfaz de Almacenamiento
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
