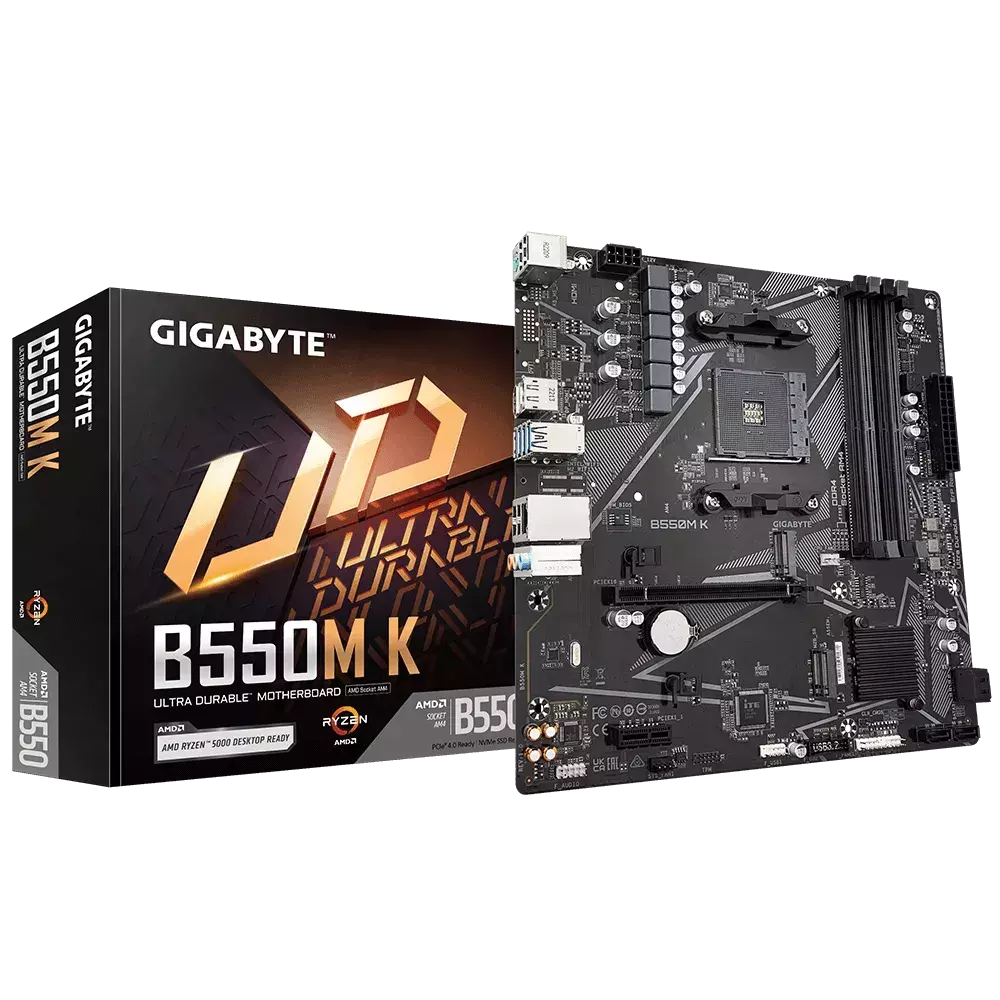

Placa base ultraduradera AMD B550 con solución VRM digital, ranura PCIe 4.0 x16, conectores duales PCIe 4.0/3.0 M.2, LAN GbE, Smart Fan 5 con FAN STOP
Compatible con procesadores AMD Ryzen™ serie 5000/Ryzen™ serie 5000 G/Ryzen™ serie 4000 G y Ryzen™ serie 3000 y Ryzen™ serie 3000 G
DDR4 sin búfer ECC/no ECC de doble canal, 4 DIMM
Ranura para PCIe 4.0 x16 Ultra Durable™
Conectores duales ultrarrápidos NVMe PCIe 4.0/3.0 M.2
Condensadores de audio de alta calidad y protección contra el ruido de audio para una calidad de audio máxima
LAN GbE con gestión de ancho de banda
DisplayPort trasero y HDMI para compatibilidad con múltiples pantallas
Smart Fan 5 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con función FAN STOP
Diseño de resistencias antiazufre
Procesador
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
AMD B550
Memoria
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Gráficos Integrados
Integrated Graphics Processor with AMD Radeon™ Graphics support:
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Puertos de Expansión
1 x PCI Express x16 slot, integrated in the CPU:
AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode
* Actual support may vary by AMD CPU's specification.
AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode
1 x PCI Express x1 slot, integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Interfaz de Almacenamiento
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:
Supporting PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
